Phantoms for Medical Imaging

Fast/Acute Abdomen Phantom "FAST/ER FAN"

Åpne stort bilde

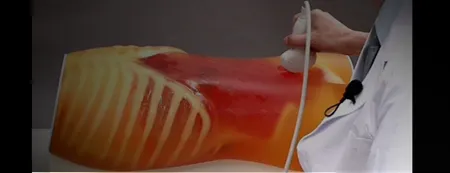

This phantom has been developed to provide simulated training in FAST (Focused Assessment with Sonography for Trauma) ; an ultrasound examination directed at identifying the presence of free intraperitoneal or pericardial fluid in the traumatic patients, which allows detecting the possible cause of shocks such as mass hemothorax, intraperitoneal hemorrhage or cardiac tamponade.


Production Supervision:

Junji Machi, MD, PhD
University of Hawaii at Manor and Kuakini Medical Center


Last ned produktbeskrivelse (PDF)


Se video (WMV)
Video


Training items

  • FAST procedure: International hemorrhage at perihepatic, perisplenic, pelvis and pericardium area.
  • Sonography for acute patients: Internal hemorrhage at pericardial, bilateral chambers as well as intra-abdominal hemorrhage around the liver, the spleen and the urinary bladder. Pathologies including cholecystitis, an aortic aneurysm, a lesion on the colon.

Specifications

Materials:

  • soft tissue and organs: Urethane base resin
  • synthetic bones: Epoxy base resin
  • size: approx. 61 x 30 x 30 cm,
  • weight: approx. 31 kg

Set Includes:

  • 1 Ultrasound phantom "FAST/ER FAN" with carring base
  • 1 Tutorial Manual (DVD)

photo:




Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND
stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
