Phantoms for Medical Imaging

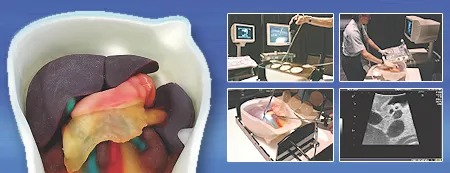

Abdominal Intraoperative & Laparoscopic Ultrasound Phantom "IOUSFAN"

Åpne stort bilde

Innovative phantom simulating abdominal open intraoperative and laparoscopic ultrasound.

Last ned produktbeskrivelse (PDF)



Produktegenskaper

  • Inanimate tool for training of a novice to demonstration by an expert.
  • Detailed hepatobiliary, pancreatic and other abdominal anatomy meeting requirement for excellent training : open intraoperative scanning of the liver, biliary tract, pancreas; laparoscopic examination of the biliary system for screening of stones and evaluation of hepatic and pancreatic lesions, etc.
  • Soft phantom materials allowing realistic probe manipulation.
  • Various simulated lesions including biliary stones and cysts, solid tumors (hypoechoic, hyperechoic and target-appearance) in the liver, pancreas, spleen and kidneys.
  • Detachable stomach and duodenum allowing various scanning methods of the bile duct and pancreas.
  • Container allowing water-immersion scanning for both contact and stand-off techniques, simulating real abdominal intraoperative and laparoscopic scanning. (No ultrasound gel required)
  • Near real-size organs, structures and abnormal lesions.
  • Container with phantom fits in the laparoscopic trainer box so that laparoscopic ultrasound of organs is possible under direct laparoscopic view.
  • Durable long-life phantom materials.

Specifications

The phantom includes:

  • the liver (segmental anatomy,
  • portal and hepatic venous systems,
  • ligamentum teres and ligamentum venosum),
  • biliary tract (gallbladder,
  • cystic duct,
  • intrahepatic and extrahepatic bile ducts),
  • pancreas (pancreatic duct),
  • spleen,
  • kidneys,
  • detailed vascular structures (aorta, vena cava, celiac artery and its branches, portal vein and its branches, superior mesenteric vessels, renal vessels, etc)

Pathology includes:

  • hepatic lesions (cystic and solid),
  • gallbladder and bile duct stones,
  • pancreatic tumors (one invading the portal vein),
  • splenic lesions,
  • both kidney lesions,
  • and left adrenal tumor.

Set Includes:

  • Upper abdomen ultrasound phantom
  • Phantom container

photo:




Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND
stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
