PH-5

Phantoms for Medical Imaging

CT Abdomen Phantom

Åpne stort bilde

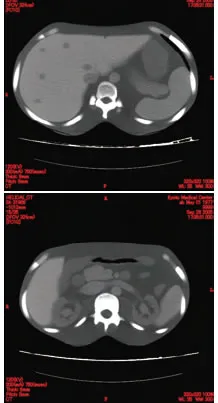

This unique anthropomorphic upper abdomen phantom allows obtaining CT images approximate to clinical data. The elaborate anatomy of organs allows a multi-dimensional approach. Liver, portal vein, bile duct, hepatic vein, hepatic artery, kidneys, pancreas spleen and IVC are embedded along with synthetic bones. Each individual organ has a particular Hounsfield number close to human organ.

Last ned produktbeskrivelse (PDF)



Produktegenskaper

Specifications

Embedded anatomical structures:

  • Lungs (no internal structure),
  • Heart (no internal structure),
  • Liver,
  • Portal vein,
  • Bile duct,
  • Hepatic vein,
  • Hepatic artery,
  • Kidneys,
  • Pancreas,
  • Spleen,
  • IVC,
  • Spinal column,
  • Ribs

Materials:

Polyurethane, epoxy resin *Vessels and organs with a contrast agent can be included as a special order.

photo:








Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND
stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
