PH-3

Phantoms for Medical Imaging

Angiographic CT Head Phantom ACS

Åpne stort bilde

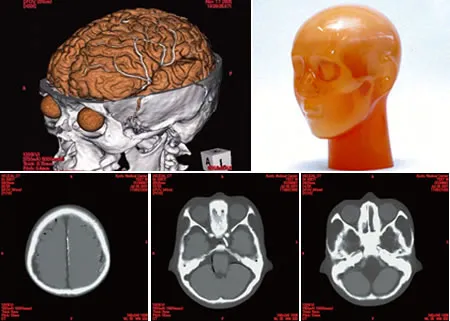

The ACS head phantom is designed for image evaluation in CT angiography scanning and can be used as an educational tool for medical image interpretation. The head phantom includes a synthetic skull, cervical vertebrae (C1-C7), brain and arteries, along with arteries with contrast medium embedded in the left half of the head.

The anterior cerebral artery and middle cerebral artery are three-dimensionally disposed. Diameters of simulated arteries range from approx. 0.5 mm to 4.0 mm.

Last ned produktbeskrivelse (PDF)



Produktegenskaper

CT Features

  Soft tissue Cerebrum Mesencephalon Cerebellum Cerebral ventricles Eye balls
Hounsfield number 0 40 40 40 10 20

Specifications

Set includes:

  • 1 head phantom
  • 1 carrying case

Packing size:

49 x 33 x 35H cm, 9.5 kg







Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND
stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
