Phantoms for Medical Imaging

Whole Body Phantom PBU-50

Åpne stort bilde

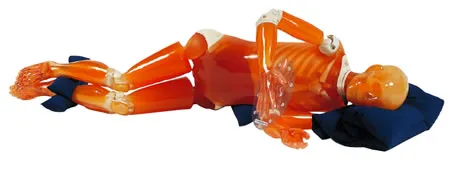

The Whole body phantom PBU-50 is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in KYOTOKAGAKU original soft tissue substitute. Movable joints allow basic positioning for plain X-ray and training/research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk). There are no metal parts or liquid structures.

Last ned produktbeskrivelse (PDF)


Se video (WMV)
Video


Produktegenskaper


Patient positioning:

Right shoulder rotates side ways, abducting to a horizontal position.
Left shoulder rotates forward, up to a horizontal position.
Elbows bend inward to approx. 90 degrees.
Hip joints rotate forward up to 90 degrees, then rotate outward up to 45 degrees, respectively.
Knees bend to approx. 90 degrees.

The phantom can be held in the supine frog leg position. The limbs and head are detachable at joints and neck for wider applications. The head supporter facilitates various head positions.

Anatomy:

  • Life size synthetic skeleton
  • Hands and feet with bone trabeculae
  • Lungs with pulmonary vessels
  • Mediastinal space
  • Liver
  • Kidneys

Original phantom materials:

Radiology absorption and Hounsfield number approximate to human body.

Materials and features:

  • Soft tissue and organs: Urethane base resin (SZ-50)
  • Synthetic bones: Epoxy base resin
  • Joint attachments: Epoxy, urethane with carbon fiber
  • Screws: Polycarbonate

photo:

Soft tissue (SZ-50) material
Material Density g/cm3 Effective Atomic
Number		 Electron Density
x10~23e/g		 Elemental Composituion (wt%)
H C N O
Water 1.000 7.417 3.343 11.19     88.81
SZ-50 1.061 6.14 3.258 8.41 72.25 4.61 14.73


  Soft tissue Liver Kidneys
Hounsfield number (Approximation) -7 70 30
Density g/cm3 1.061 1.089 1.075


Specifications

Set includes:

  • 1 whole body phantom PBU-50 (separable into 10 parts), including:
    • Synthetic bones,
    • pulmonary vessels,
    • mediastinal space,
    • liver,
    • kidneys are embedded
  • 1 head supporter
  • 1 set of replacement joint connectors and screws (1 piece for each)
  • 1 flat head screwdriver
  • 1 set of sample X-ray films

Phantom size:

approx. 165 cm height

Phantom weight:

approx. 50 kg

Packing size:

approx. 85 X 60 X 44, two-pack

Packing weight:

approx. 80 kg



photo:




Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND		 stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
