Patient Simulator System HST series for physical examination skills training

Colonoscope Training Model

Åpne stort bilde

The soft, flexible and airtight material allows realistic colonoscope insertion and withdrawal training as well as insufflation, suction and difficult maneuver techniques, providing the necessary training to avoid pain and discomfort during an examination.
The human colon constantly changes its orientation in the abdomen, and the training model can also provide varied cases to examine while practicing proper colonoscope handling and techniques. From simple and uncomplicated cases to difficult and sensitive variations, this training model is designed to allow for a wide range of challenges to students and professionals alike, teaching skills step-by-step for a high level of confidence and competence.

Last ned produktbeskrivelse (PDF)


Se video (WMV)
Video


Funksjoner

  • 1.The soft, flexible colon tube provides a life-like response to use of a colonoscope, in order to acquire skills such as preventing "loops" and straightening them to safely reach the caecum.
  • 2.The colon tube can be made airtight, allowing for insufflation and suction.
  • 3.The anal sphincter opening can be manipulated by a hand pump.
  • 4.The training body may be oriented in either the left lateral, right lateral or supine positions.
  • 5.Five different layout guides with six cases and a training guide book are included. The colon tube can be easily attached to the abdomen body according to each particular case to be studied.

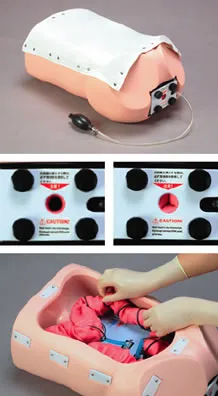

  • photo:

  • 6.Manual abdominal compression can be practiced by using the supplied skin cover.
  • 7.Newly developed lubricant gels (included) provide for smooth colonoscope manipulation as well as reduced wear of the colon tube.
  • 8.The colon tube is detachable and easy to clean with just water.
  • 9.Replacement colon tubes are available as needed.


  • Specifications

    Set includes:

    • Abdomen model: 1 piece
    • Colon-rectum tube: 1 piece (replaceable tubes available)
    • Anus unit: 1 piece
    • Air bulb: 1 unit
    • Abdomen skin cover: 1 piece
    • Colon fixture set: 1 set (5 type A fixtures, 10 type B fixtures, wrench, double clip)
    • Colon layout guide: 5 guides (6 cases total)
    • Concentrated lubricant packs:
      • Blue packs for training model 30x50 ml each
      • Pink packs for endoscope 30x20 ml each
    • Plastic bottle: 1 unit
    • Stand: 1 unit
    • Rubber sheet: 1 piece
    • Anus plug: 1 piece
    • Instruction manual: 1 copy (28pages)
    • Training guide: 1 copy (32pages)
    • Storage case: 1 unit

    Model size:

    47 x 31 x 21.5 cm (excl. stand)

    Model weight:

    approx. 6.5 kg (all parts attached)

    Packing size:

    approx. 30 x 70 x 50 cm

    Packing weight:

    approx. 20 kg

    *Specifications are subject to change.

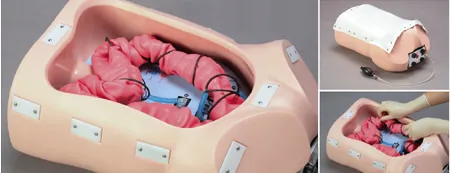

    photo:


    photo:


    photo:

    Replacement parts

    Replacement parts:

    • 11361-010 Colon-rectum tube: colon tube, tube caps (one inner, one outer cap), anus plug
    • 11361-020 Anus unit: anus unit with air tube and air bulb
    • 11361-030 Colon fixture set: 5 type A fixtures, 10 type B fixtures, wrench, double clip
    • 11361-120 Colon layout guide: 5 sheets, (6 cases total), training guide leaflet
    • 11361-040 Concentrated lubricant packs: Blue packs for training model - 30 x 50ml each
    • 11361-050 Pink lubricant packs for endoscope - 30 x 20ml each
