US-2
Produktegenskaper

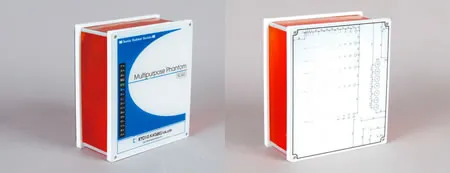

N-365 Multipurpose PhantomUseful both for daily assessment and further research. Gray scale for contrast evaluation, cyst targets with non-resonance cylinders, line targets for geometrical evaluation, close range (dead zone) resolution, axial and angular resolution are prepared for scanning. The phantom is designed to allow scanning from all four side walls. |
|
N-060 QA PhantomBasic quality assurance phantom for daily assessment with cyst targets and line targets. |
|
N-255 Cyst PhantomProbe performance can be evaluated up to 200 mm depth. Geometrical resolution and permeability can be assessed |
|
N-211 String PhantomNylon strings targets for image distortion assessment, axial resolution and angular resolution. |
|
SpecificationsMaterial:
Acoustic Features:
Set includes:
Phantom size:
Packing size:
|
|
|
|
Teknisk informasjon
The classification of lung sounds is based on the criteria of the American Thoracic Society.
36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds | |||
---|---|---|---|
NORMAL | standard | FINE CRACKES | both lower area |
mildly weak | both lower and middle area | ||
mildly strong | whole thorax 1 | ||
mildly rapid | whole thorax 2 | ||
loud heart sounds | WHEEZES | upper and middle area | |
ABNORMAL | weak: left lower area | around trachea and upper area1 | |
weak: left whole area | around trachea and upper area2 (polyphone) | ||
absent: left | RHONCHI | trachea and upper area | |
weak: right lower area | trachea and upper area (polyphonic) | ||
weak: right lower area | with an inspiratory wheeze | ||
absent right | whole thorax | ||
weak: whole thorax | MISCELLANEOUS CONTINUOUS SOUND |
stridor | |
bronchial sounds | squawk | ||
COARSE CRACKELS | right lower area | MISCELLANEOUS | pleural friction rub: left lower area |
both lower area | pleural friction rub: right lower and middle area | ||
right middle area | Hamman's sign | ||
left lower area | Vocal fremitus (palpable at both sides of the chest) | ||
both upper area | |||
whole thorax |
Components & Specifications
Component | Qty | Measurements | Packing size | Specifications |
---|---|---|---|---|
LSAT model unit | 1 | 32 x 35 x 62H cm | 51 x 46 x 80 cm 10 kg | Torso with rotary base 15 built-in speakers 8 ch. amplifier |
PC | 1 | 59 x 59 x 40 cm 15 kg | Windows XP, 12ch.D/A PCI board,mouse, 112keyboard, 15"TFT monitor *Software & data installed |
|
Amplifier | 1 | 32 x 35 x 8H cm | 46 x 46 x 15 cm 10 kg | AC 120-240V |
Speakers | 2 | 62 x 41 x 40 cm 20 kg (incl. monitor) |
||
T-shirt | 1 | free size |
