PH-2C

Phantoms for Medical Imaging

Pediatric Whole Body Phantom "PBU-70"

Åpne stort bilde

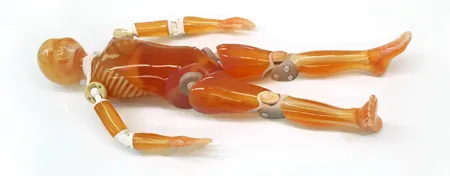

The New Kyoto Kagaku Pediatric Whole Body Phantom modeled after a 4-year-old child of 42"(105cm) tall.

This phantom is a life-size, full body anthropomorphic phantom with a state-of-the-art synthetic skeleton, lungs, liver, mediastinum and kidneys embedded in KYOTOKAGAKU original soft tissue substitute.

Last ned produktbeskrivelse (PDF)



Produktegenskaper

Movable joints allow basic positioning for plain X-ray.
Training and research applications can be enriched by disassembling the phantom into 10 individual parts (head, limbs and trunk).
Main joints have life-like articulation, allowing various positioning for training.
The phantom has no metal parts or liquid structures.

Set includes:

1 Whole Body Phantom PBU-70 (separable into 10 parts)
Synthetic bones,
embedded organs are listed on page 1.
phantom size: approx. 105cm height
phantom weight: approx. 20kg
  • head
  • trunk
  • right arm
  • right forearm-hand
  • left arm
  • left forearm-hand
  • right thigh
  • right leg -foot
  • left thigh
  • left leg -foot

photo:

photo:

photo:



Teknisk informasjon

The classification of lung sounds is based on the criteria of the American Thoracic Society.

36 cases are available for training. 34 cases include 2 versions -- with and without heart-sounds
NORMAL standard FINE CRACKES both lower area
  mildly weak   both lower and middle area
  mildly strong   whole thorax 1
  mildly rapid   whole thorax 2
  loud heart sounds WHEEZES upper and middle area
ABNORMAL weak: left lower area   around trachea and upper area1
  weak: left whole area   around trachea and upper area2 (polyphone)
  absent: left RHONCHI trachea and upper area
  weak: right lower area   trachea and upper area (polyphonic)
  weak: right lower area   with an inspiratory wheeze
  absent right   whole thorax
  weak: whole thorax MISCELLANEOUS
CONTINUOUS SOUND		 stridor
  bronchial sounds   squawk
COARSE CRACKELS right lower area MISCELLANEOUS pleural friction rub: left lower area
  both lower area   pleural friction rub: right lower and middle area
  right middle area   Hamman's sign
  left lower area   Vocal fremitus (palpable at both sides of the chest)
  both upper area
  whole thorax

Components & Specifications

Component Qty Measurements Packing size Specifications
LSAT model unit 1 32 x 35 x 62H cm 51 x 46 x 80 cm 10 kg Torso with rotary base
15 built-in speakers
8 ch. amplifier
PC 1 59 x 59 x 40 cm 15 kg Windows XP, 12ch.D/A
PCI board,mouse,
112keyboard, 15"TFT monitor
*Software & data installed
Amplifier 1 32 x 35 x 8H cm 46 x 46 x 15 cm 10 kg AC 120-240V
Speakers 2 62 x 41 x 40 cm
20 kg (incl. monitor)
T-shirt 1 free size
